ZAF270K-A (Supermarket Version)

27" Self-service Kiosk (Supermarket version)

Product consulting Data download

Share：

Features

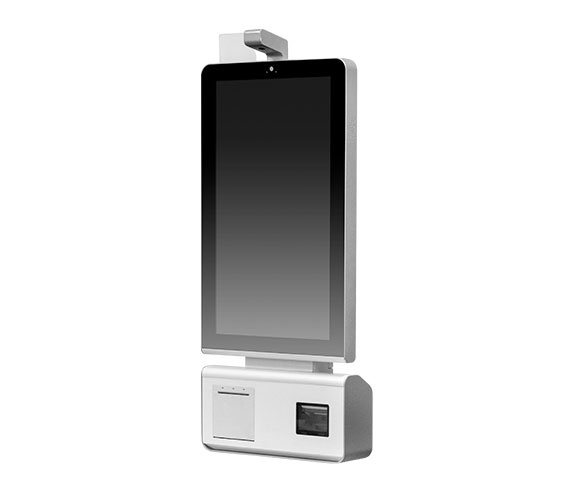

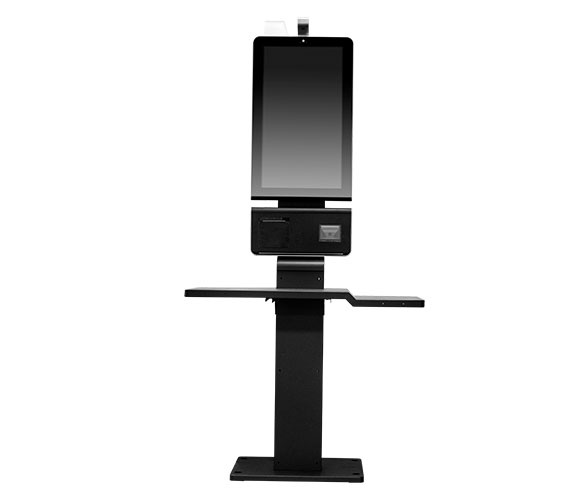

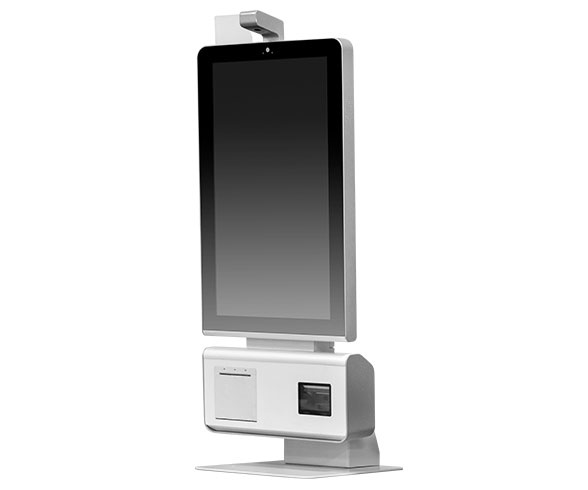

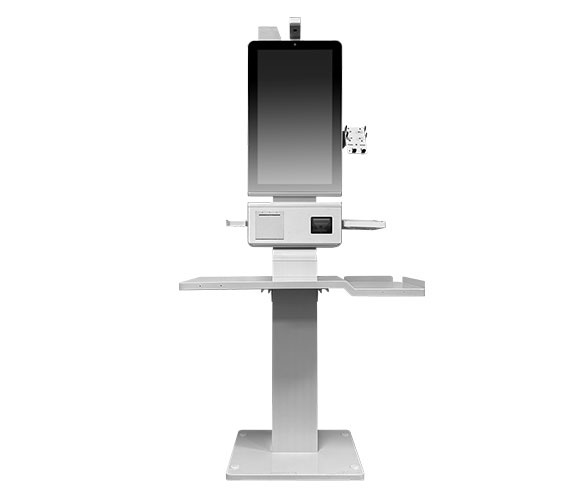

27" Self-service Kiosk

ZAFIRO SUPERMARKET VERSION

27" FHD Touch Display

27-inch FHD bezel-free screen with superior visual experience and smooth user-interaction.

Color LED Indicator

Multicolor lights provide real-time visual alerts for instant equipment monitoring.

Modular Design

Supports optional modules including payment terminal, MSR, NFC and camera to fit varied commercial scenarios.

High-Speed Printer

Ensures rapid receipt printing with eortless paper roll replacement to minimize downtime.

2D Barcode Scanner

High-performance scanning instantly reads product QR codes to streamline checkout.

Specs

Model Number	ZAF270K-A(Supermarket Version)
SYSTEM
Processor	RK3568 Quad-Core Cortex-A55 up to 2.0GHz RK3576 Quad-core Cortex-A72 + Quad-core Cortex-A53 up to 2.2GHz
Memory	4GB DDR4
Storage	32GB EMMC
OS	Android 11
DISPLAY
Type	27 Inch TFT LED Backlight LCD
Resolution	1920*1080
Aspect Ratio	16:9
Brightness	300cd/m2
Touchscreen	Projective Capacitive Touch Screen
INTERFACE
Display	1*HDMI
Standard USB Port	2Internal USB, 2External USB
LAN	1*Gigabit Ethernet, RJ45
Audio	2*Internal 3W Speaker
Power DC-IN	Input AC 100~240V/50~60hz
STANDARD COMPONENTS
Scanner	2D Barcode Scanner
Printer	3" Printer W/Auto Cutter, 200 mm/sec (Max.)
Status Indicator	Color LED Indicator
PHYSICAL&ENVIRONMENTAL
Operating Temperature	Operating 0~60°
Operating Temperature	Storage -35°~75°
Cooling	Fanless or with CPU Fan
Dimensions(W×H×D)	Wall Mounting: 923.5422115(mm) Floor-standing: 1734550450(mm)
Net Weight	Countertop Stand: 24.84kg Floor-standing: 45.42kg
Color	Black/Silver
OPTIONS & PERIPHERALS
Wifi	IEEE 802.11 a/b/g/n/ac, 2.4Ghz
Bluetooth	Bluetooth 5.0(Option)
MSR	Comply with ISO 7811, Support 1&2&3 Track (Option)
NFC	MIFARE, FeliCa, IS0/IEC 14443A/B ISO/IEC 18092,ECMA 340 NFCIP-1 Peer-to-Peer (Option)
Camera	2 MP Wide Angle Camera (Option)
4G/LTE Communication	Support Selected Bands & Countries With Full SIM Slot (Mini-pcl e Module) By Request
Payment Termimal Bracket	Adjustable Bracket (Option)
