ATH215A

ATH215A

Function introduction

Designed to handle the harsh environment of a restaurant Kitchen, the athena can dramatically improve sustainable Kitchen operations.
Share:
  • ATH215A
  • ATH215A
  • ATH215A
  • ATH215A
  • ATH215A
Features

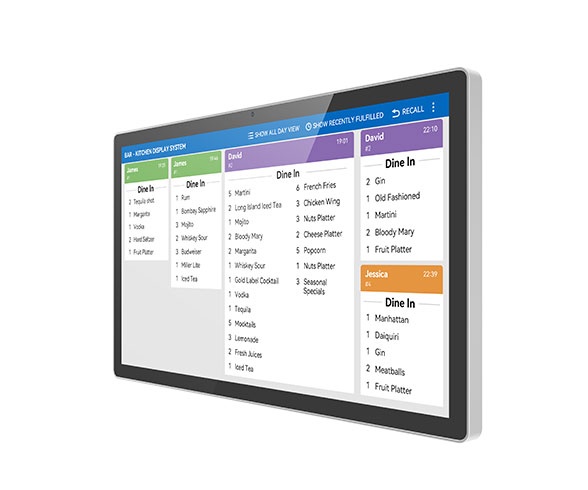

Waterproof Stainless Steel Kitchen Display System


Commercial Grade PCAP Touch Screen

The PCAP capacitive touchscreen offers ample display space for full customization of layouts and functions. Reduce unnecessary touches, cut ticket times, and keep your kitchen running smoothly.


Power Over Ethernet (POE+)

Power over Ethernet (PoE) eliminates the need for dedicated power outlets, adapters, and complex cabling at every station.
Fewer failure points mean easier troubleshooting, simpler maintenance, and hassle-free support.

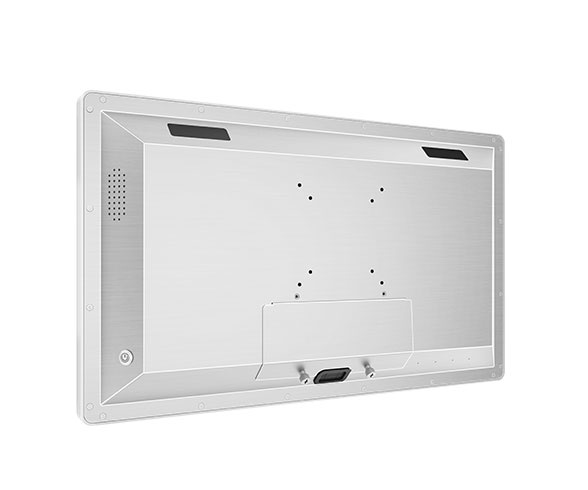

Unlock More Possibilities With A Vesa Mount

Athena can be mounted with a VESA mount, enabling more applicable scenarios. For example, it can be used as a kitchen display of a KDS , greatly improving the restaurant operational efficiency.

Specs
  • OS

    Android 14

  • CPU

    RK3576S Quad core cortex A72+Quad core cortex A53

  • Memory

    4GB ROM + 64GB RAM

  • Main Display

    21.5 inch LED Backlight Display

  • POE

    IEEE STD 802.3BT

  • Wifi

    IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 )

  • Bluetooth

    Bluetooth 5.4

  • Waterproof Rating

    Front IP65, Back IP54

Model Number ATH215A
SYSTEM
Processor RK3576S Quad core cortex A72+Quad core cortex A53
GPU ARM Mali G52 MC3
NPU 3 TOPS
Memory 4GB
Storage 32GB
OS Android 14
DISPLAY
Type 21.5-inch
Resolution 1920*1080
Aspect Ratio 16:9
Color gamut 75% NTSC
Viewing angle R/L 89/89, U/D 89/89
Contrast ratio 3000:1
Luminance 400 nits
Touchscreen Projective Capacitive Touch Screen

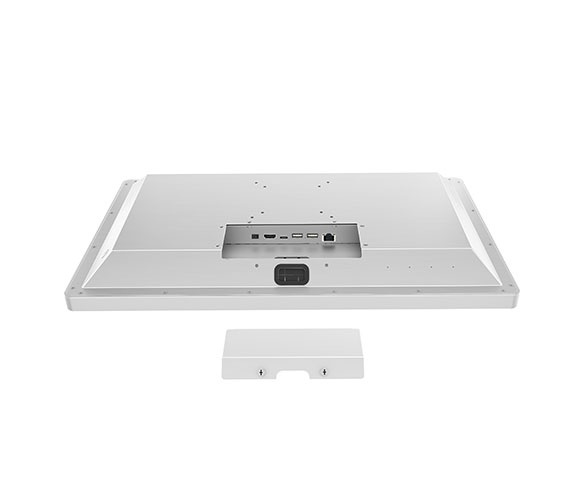

INTERFACE
Display 1*HDMI 2.0
USB 1*USB3.0, 1*USB2.0
LAN 1*RJ45 10/100/1000M Ethernet
Type-C 1* Type-C (Only supports OTG function)
Power DC-IN DC 12V/3A
PHYSICAL&ENVIRONMENTAL
Operating Temperature Operating 0~40° at 20% to 80% Humidity
Operating Temperature Storage -20°~60° at 10% to 95% Humidity
Dimensions(W×H×D) 513.56x305.58x55.3 MM
Packing Dimensions 606x381x139MM
Net Weight 5.86KG
Material Stainless steel/Sheet metal
Color Matte Black/Silve
OPTIONS & PERIPHERALS
Wifi IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 )
Bluetooth Bluetooth 5.4
Speaker 2*3W Speaker
Camera 8.0MP
POE IEEE STD 802.3BT
Waterproof rating Front IP65, Back IP54
Wall Mount VESA 75*75MM /100*100MM Bracket
